GPS Receiver (GPSR)
100
100
header-col-bg
20
1
1

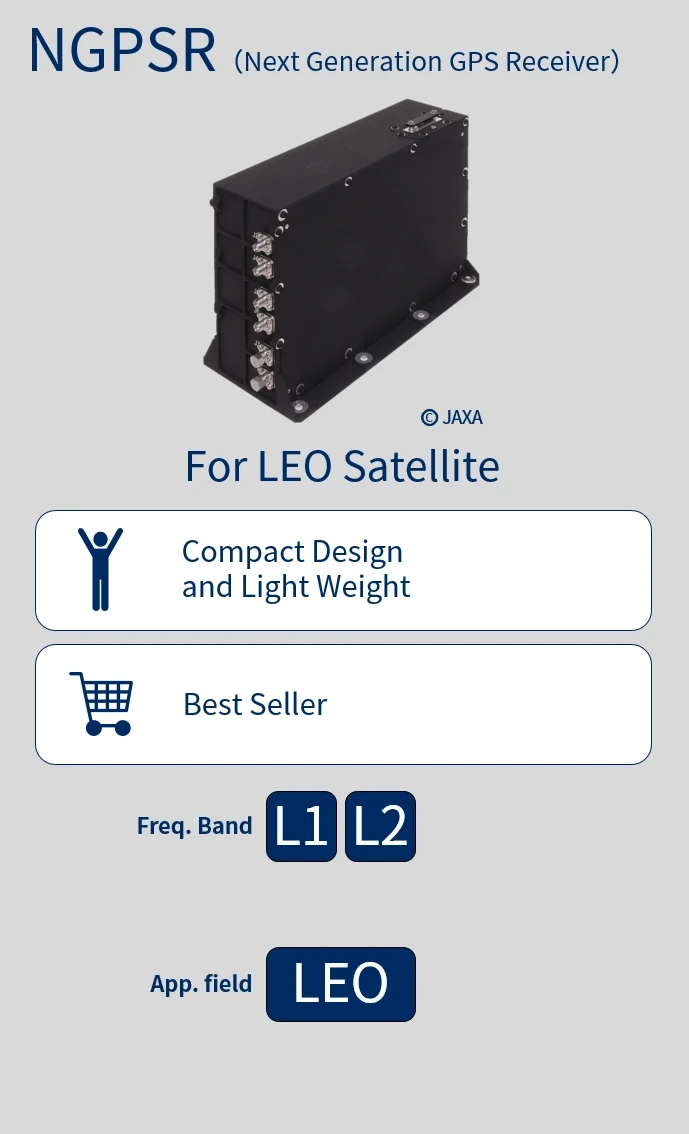

NGPSR(Next Generation GPS Receiver)
1
1
Components
1
1
GPSP (GPS Processor), GPSL (GPS LNA), GPSA (GPS Antenna)
1
1
Key features
1
1
- Our developed one package multi chip module achieves small size, light weight, and low power consumption.
- High precision navigation leads to cost reduction of ground station operation.
- High precision navigation leads to cost reduction of ground station operation.
1
1
Application field
1
1
400 to 1000 km at LEO
1
1
Received signals
1
1
L1C/A, L2P(Y), and L2C
1
1
Navigation accuracy
1
1
RSS: < 3m 95%
1
1
Dimensions and mass
1
1
GPSP
96×218×155mm(nom),
< 1.95kg
96×218×155mm(nom),
< 1.95kg
1
1
header-col-bg
20
1
1

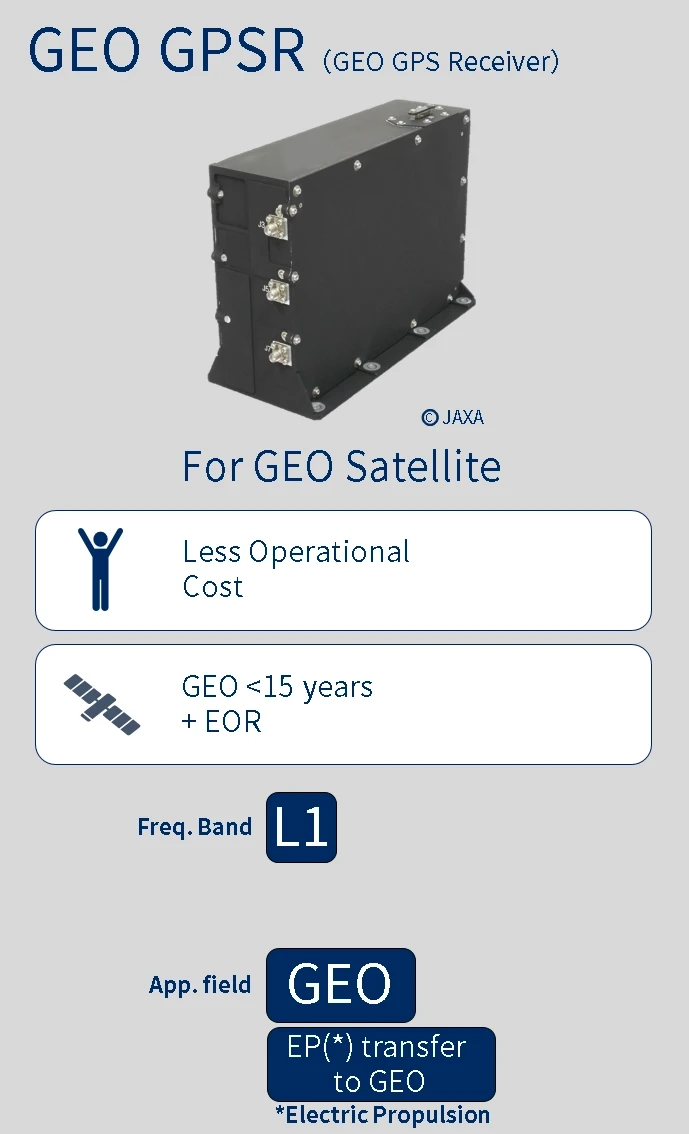

GEO GPSR(GEO GPS Receiver)
1
1
Components
1
1
GPSP (GPS Processor), GPSL (GPS LNA), GPSA (GPS Antenna)
1
1
Key features
1
1
- Our developed one package multi chip module achieves small size, light weight, and low power consumption.
- High precision navigation leads to cost reduction of ground station operation.
- High precision navigation leads to cost reduction of ground station operation.
1
1
Application field
1
1
GEO and Electric Propulsion transfer orbit to GEO
1
1
Received signals
1
1
L1C/A
1
1
Navigation accuracy
1
1
Along track: < 7m 95%,
Cross track: < 4m 95%,
Radial: < 32m 95% at GEO
Cross track: < 4m 95%,
Radial: < 32m 95% at GEO
1
1
Dimensions and mass
1
1
GPSP
98×239×168mm(nom),
< 3.3kg
98×239×168mm(nom),
< 3.3kg
